Description

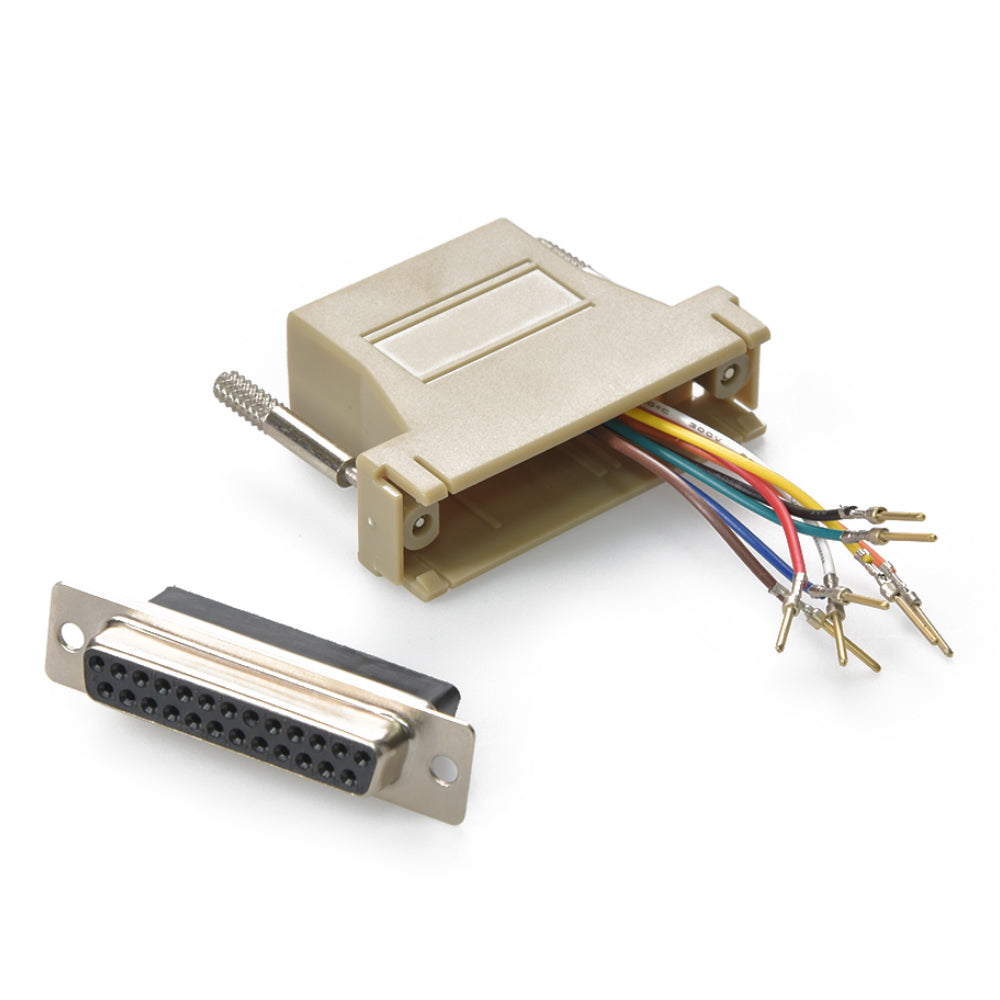

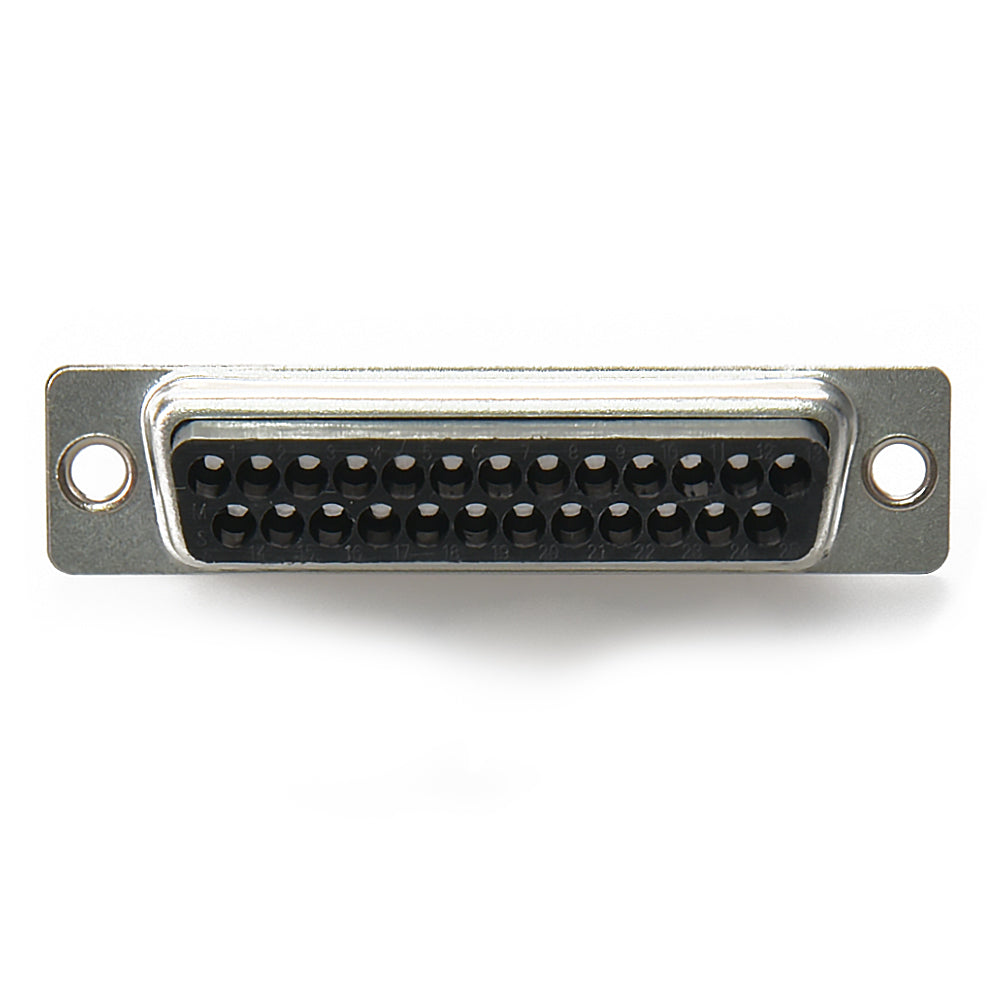

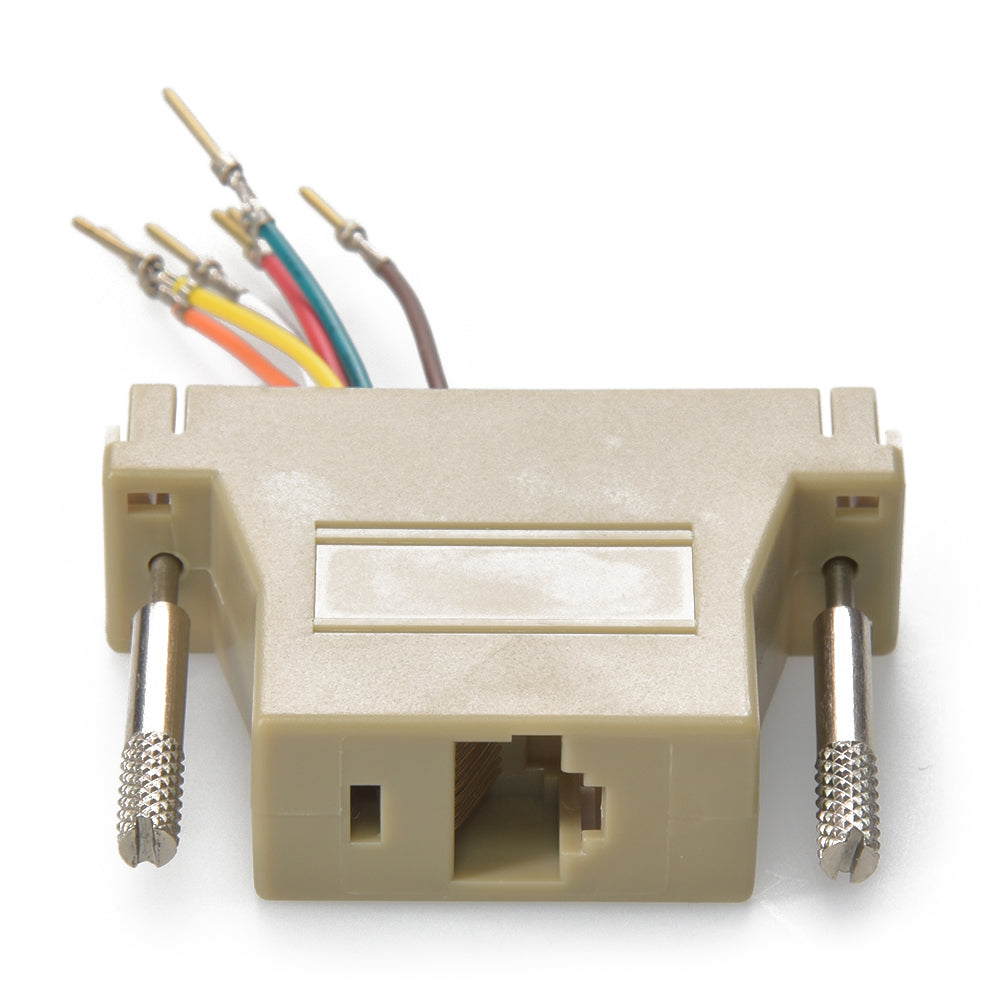

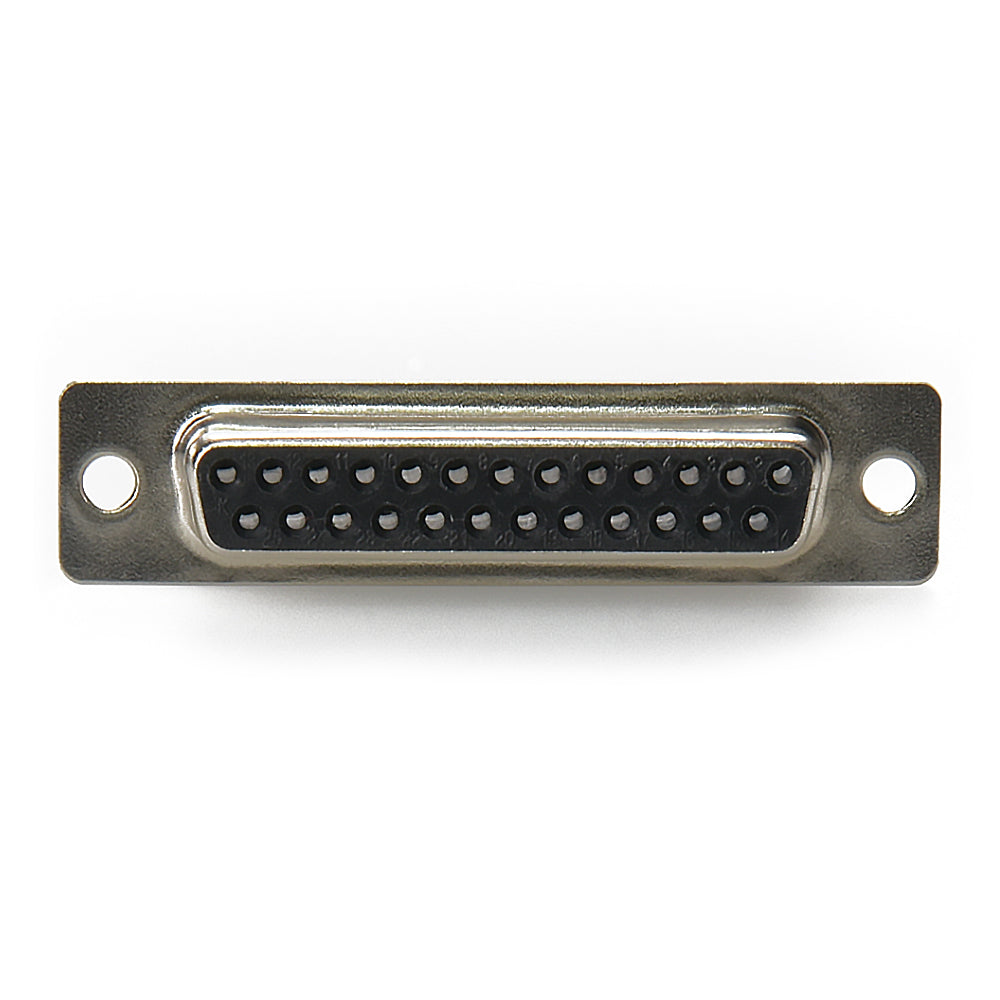

This modular adapter has a DB25 male connector that plugs into DB25 RS232 serial port and converts it to an RJ45 connection.

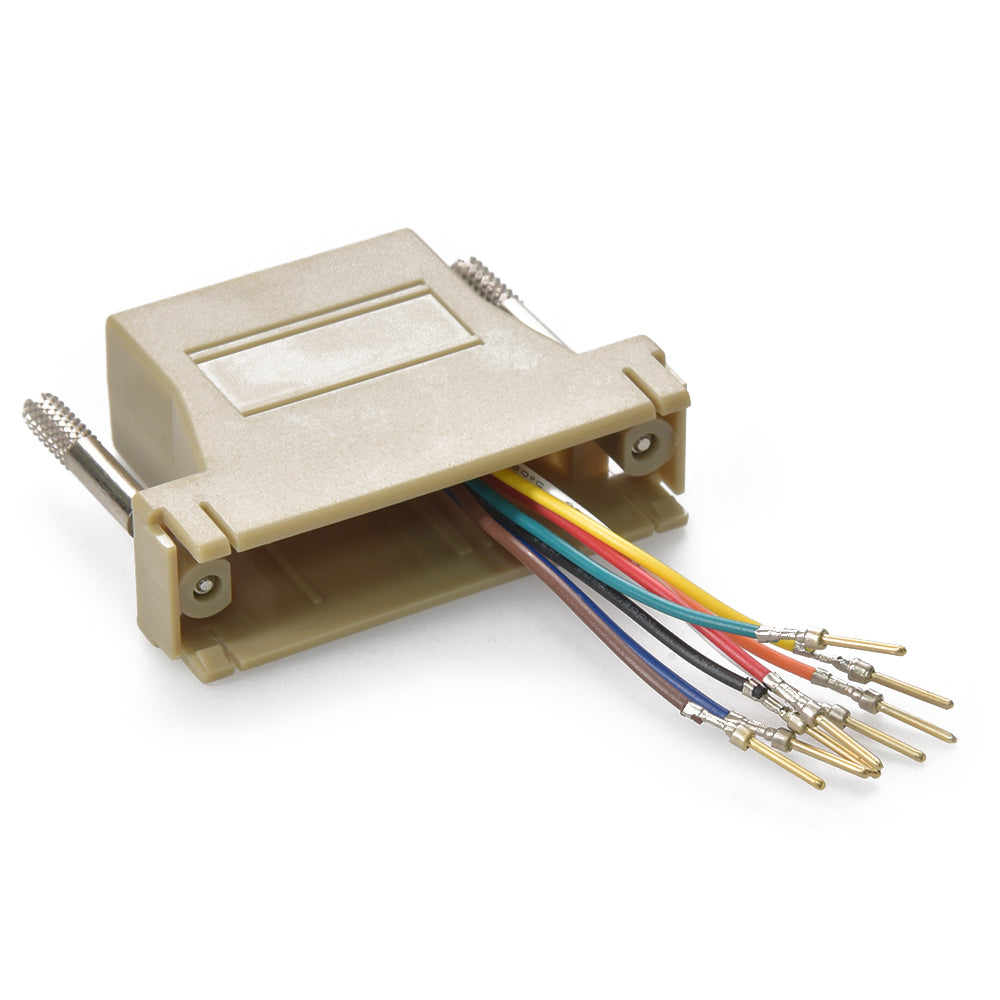

RJ45 Pinout:
Pin1 -- Blue
Pin2 -- Orange
Pin3 -- Black
Pin4 -- Red
Pin5 -- Green
Pin6 -- Yellow
Pin7 -- Brown
Pin8 -- White
- Gold plated pin
- 28AWG wire
- Molded ivory color housing
- Thumb screw
Download Spec Sheet
