Description
SMA connectors are a sub-miniature coaxial connector used in RF applications. SMA connectors are threaded for a secure connection. All SMA connectors are 50 Ohm connectors and come in male and female variations, as well as reverse polarity. our Nickle plated SMA Connectors are a simple and cost effective for your project.
This connector is Reverse Polarity, it has a Male Pin, Threads on the outside.
Features:
- Compatible with: Belden 9913 and LMR-400
- Gender: Reverse Polarity Female
- Crimp style
- Impedance: 50 Ohms

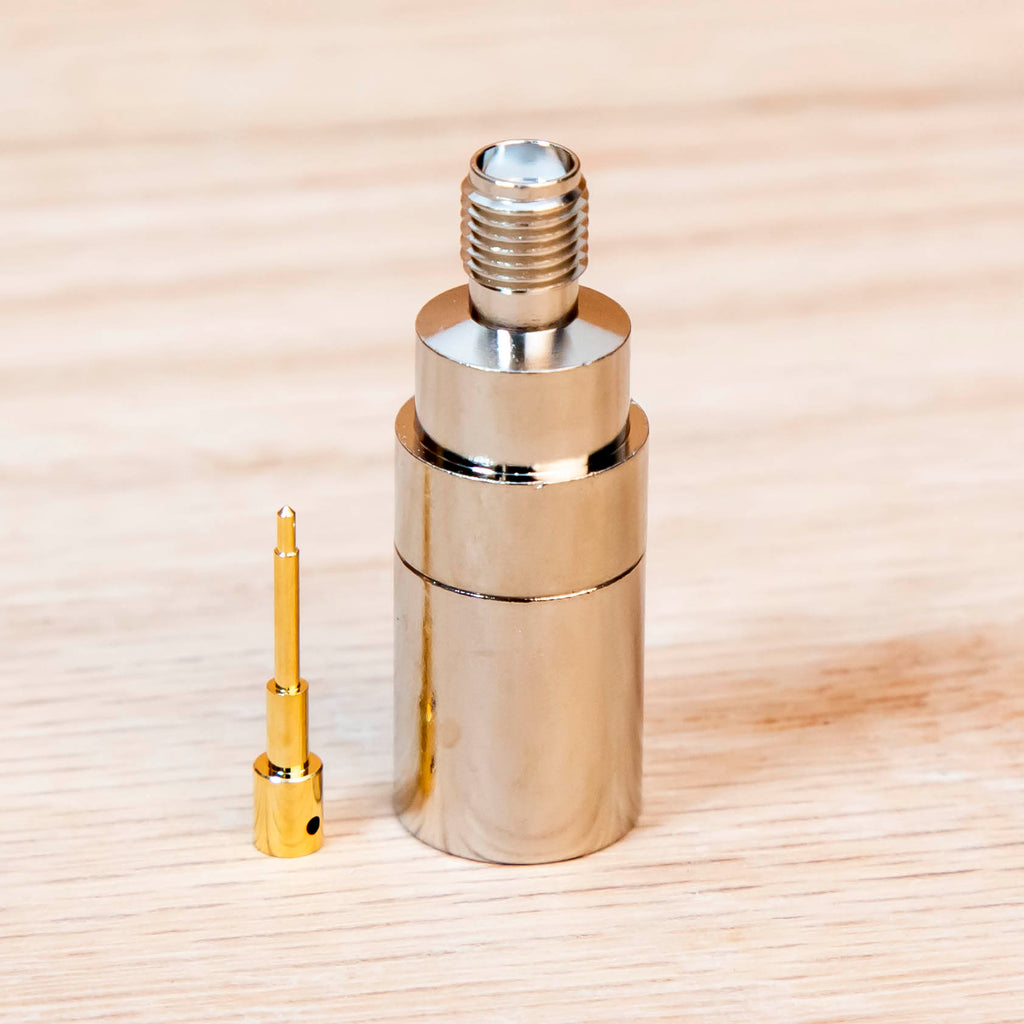

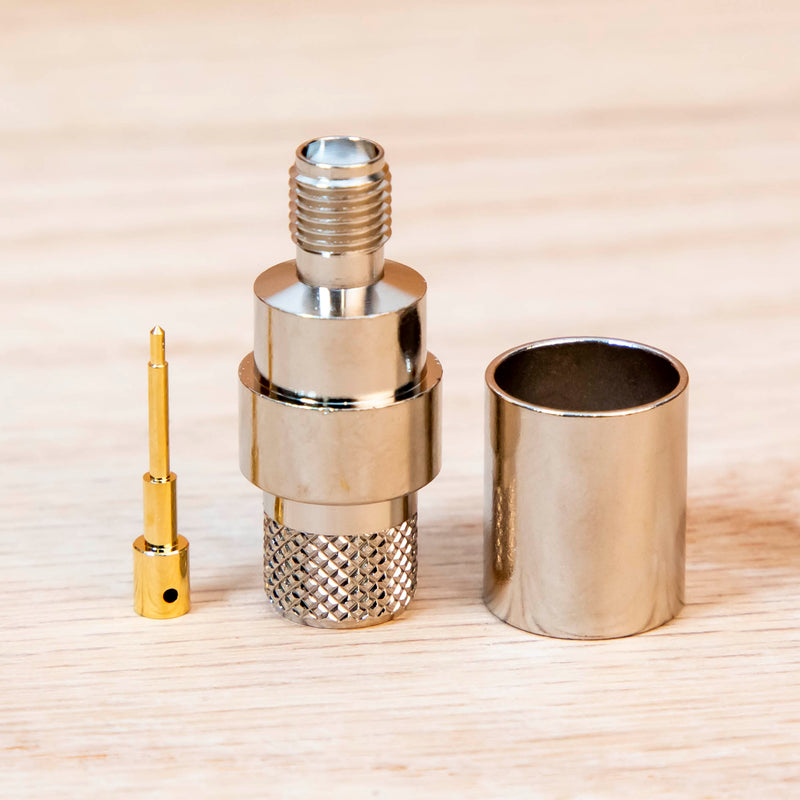

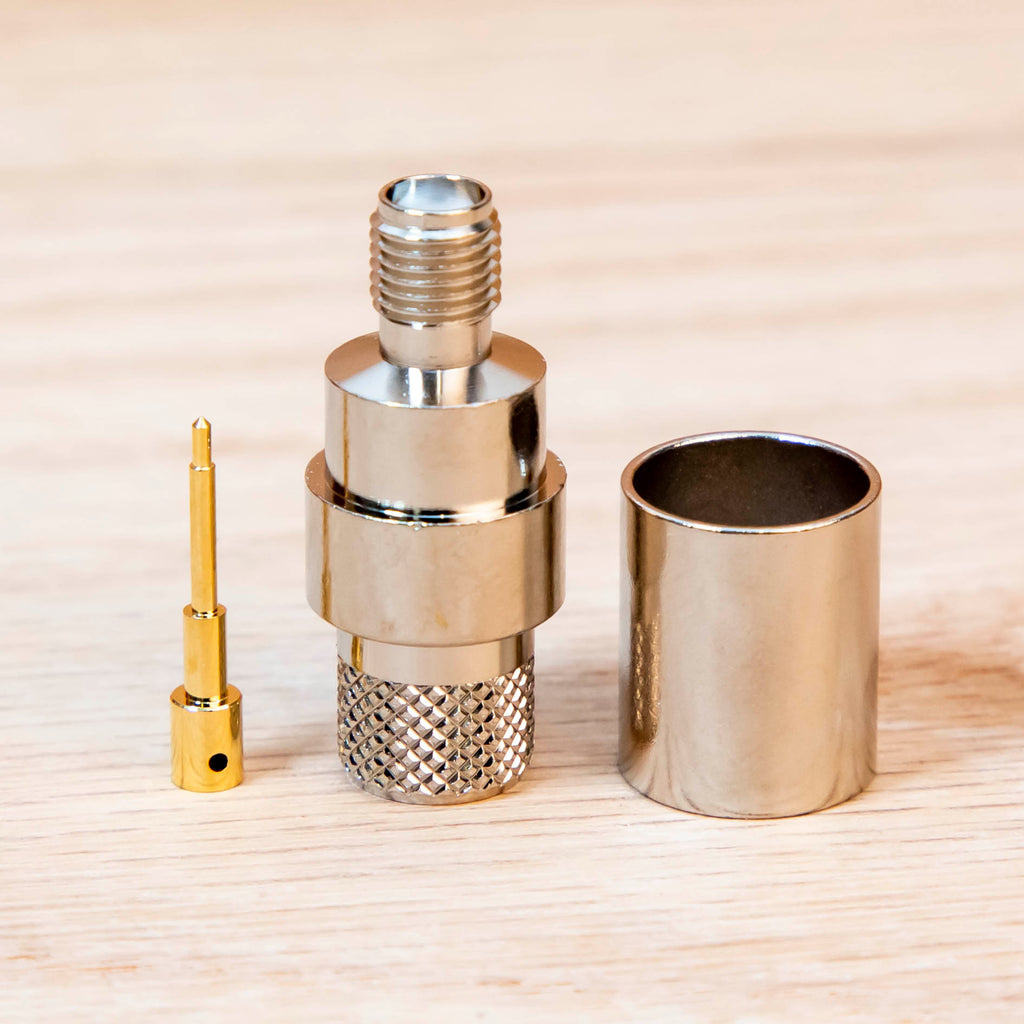

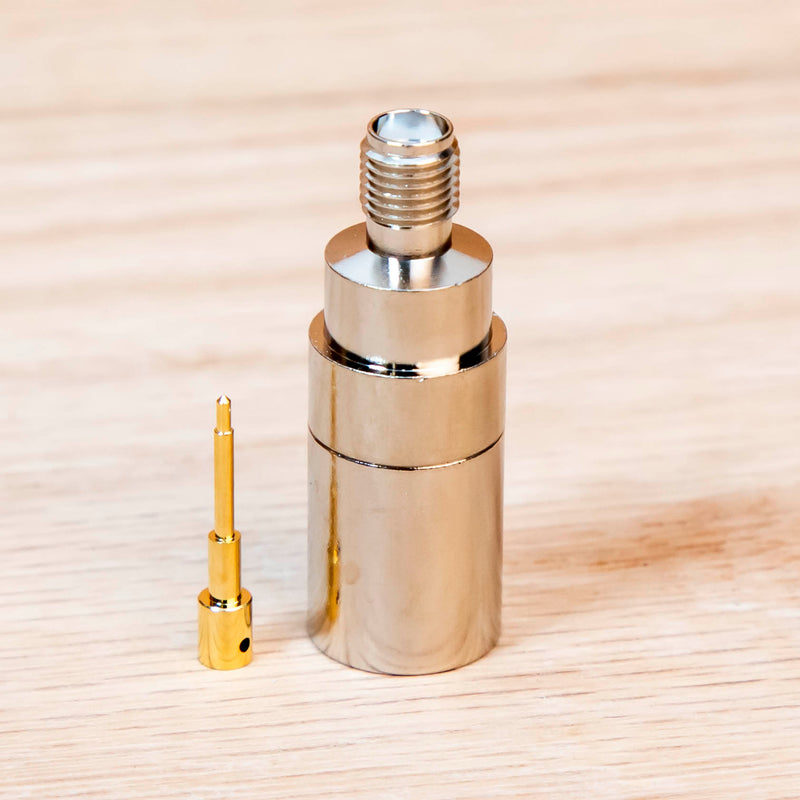

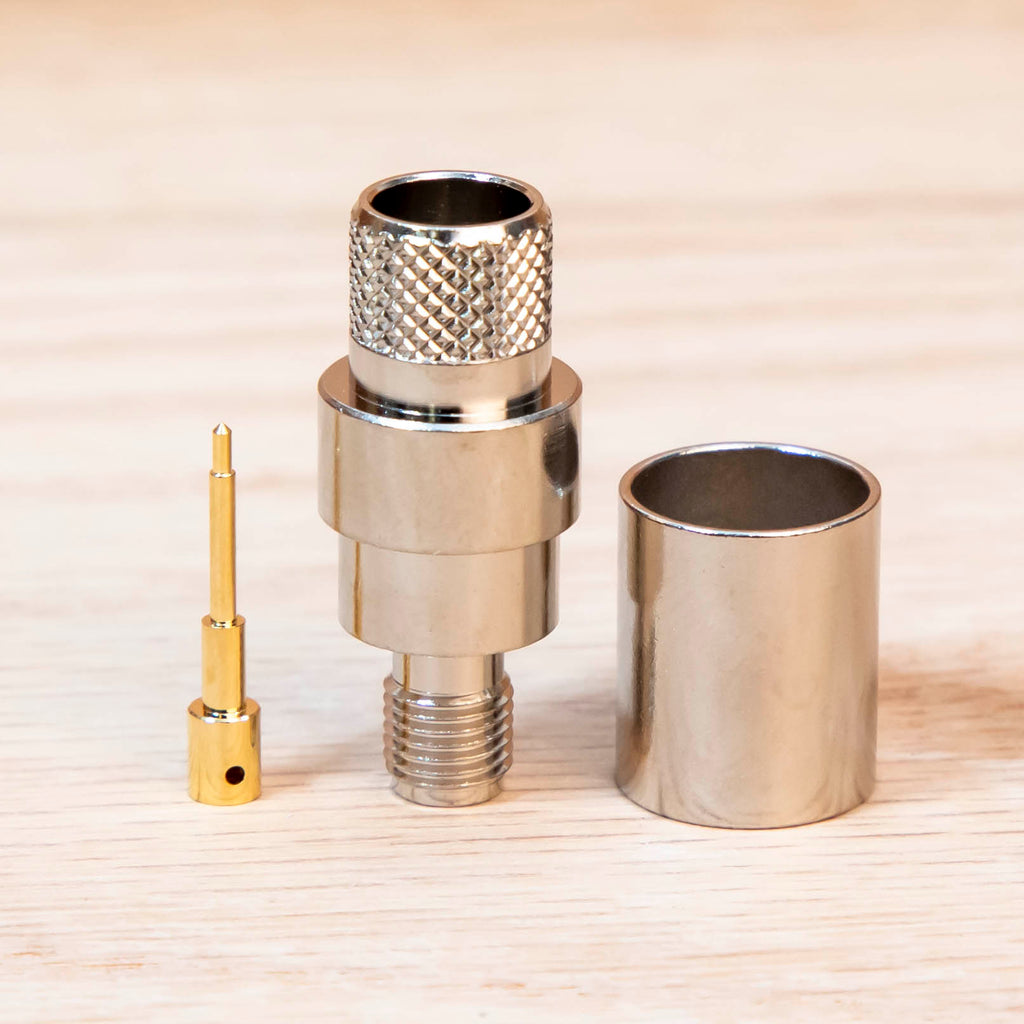

- 3 piece design (connector, pin and ferrule)
- Nickel Finish
- Frequency Range 0-6 Ghz
- Made in made in Taiwan, TAA Compliant
- LMR™ is a Trademark of Times Microwave
Need more than we show in stock? Contact us at: Info@BigCatCables.com
