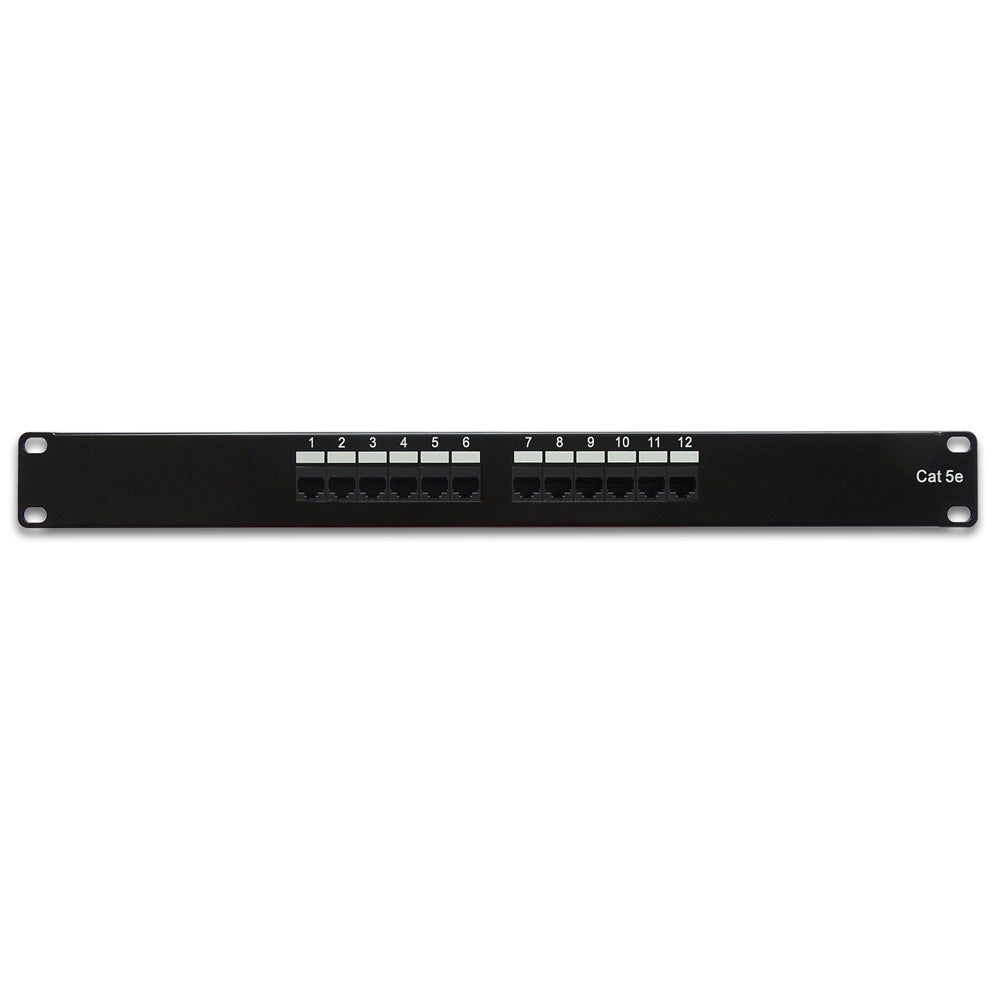

Cat. 5E 110 Type Patch Panel 12 Port Rackmount

* UL listed

  * 19 inch 1U rackmount

  * Meets TIA/EIA-568B.2/568B.2-1 Cat.5E ISO/IEC 11801 and EN 50173-1 specification

  * Support T568A & B wiring

  * Wire diameter : 22 ~ 26AWG

  * Insulation diameter range : 0.70 to 1.40mm

  * Jack contacts : Phosphor bronze, 50micron gold plate over nickel plating.

  * IDC contacts : Phosphor bronze, 50micron gold plate over nickel plating.

  * Safety : UL1863

  * Flammability : UL 94 VO

  * Operating temperature : -40 to +70 degree Celsius
