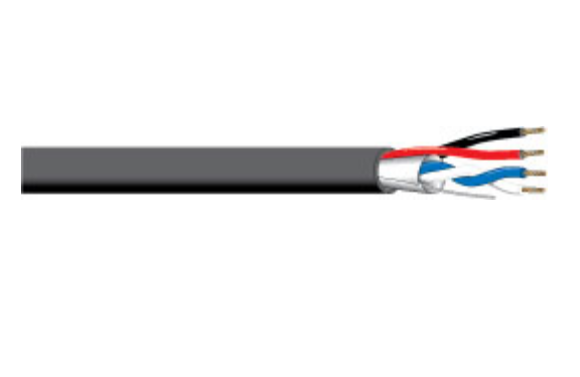

500 Foot WestPenn Control Cable, Multi-conductor Plenum-rated Jacket; 18/2, 22/2. Black Jacket. Part D25350BK
|
CONSTRUCTION & DIMENSIONS |
- |
|
|
Component |
Shielded |
Unshielded |
|
CONDUCTOR PARAMETER |
- |
|
|
• Number of Conductors |
|
2 |
|
• Number of Pairs |
1 |
|
|
• AWG Size |
22 |
18 |
|
• Conductor Stranding |
7x30 |
7x26 |
|
• Conductor Type |
Bare Copper |
Bare Copper |
|
• Nominal DCR |
17 Ohm/1000ft |
6.2 Ohm/1000ft |
|
INSULATION PARAMETER |
- |
|
|
• Insulation Type |
Foam FEP |
Plenum PVC |
|
• Insulation Thickness |
0.022 in |
0.008 in |
|
• Insulation Color Code |
1. Blue 2.White |
1. Black 2.Red |
|
SHIELDING PARAMETER |
- |
|
|
• Shield Type |
Overall 100% Aluminum Foil |
None |
|
• Drain Wire Type |
Tinned Copper |
|
|
• Drain Wire AWG |
24 AWG |
|
|
ELECTRICAL CHARACTERISTICS |
- |
|
|
• Nominal Impedance |
100 Ohm |
|
|
• Nom. Cap. Between Conductors |
12.5 pF/ft |
|
|
• Nom. Cap. Conductor to Shield |
22.5 pF/ft |
|
|
OVERALL CONSTRUCTION PARAMETERS |
- |
|
Total Number of Conductors |
4 |
|
Jacket Type |
PVC |
|
Jacket Thickness |
0.030 in |
|
Nominal Cable O.D. |
0.265 in |
|
Plenum |
Yes |
|
NEC UL Rating |
CMP |
|
RoHS Compliant |
Yes |
|
TIA Test |
|
|
Pull Tension |
29 lbs |
|
Bend Radius |
2.385 in |
|
Cable Weight |
34 lbs |
