Description

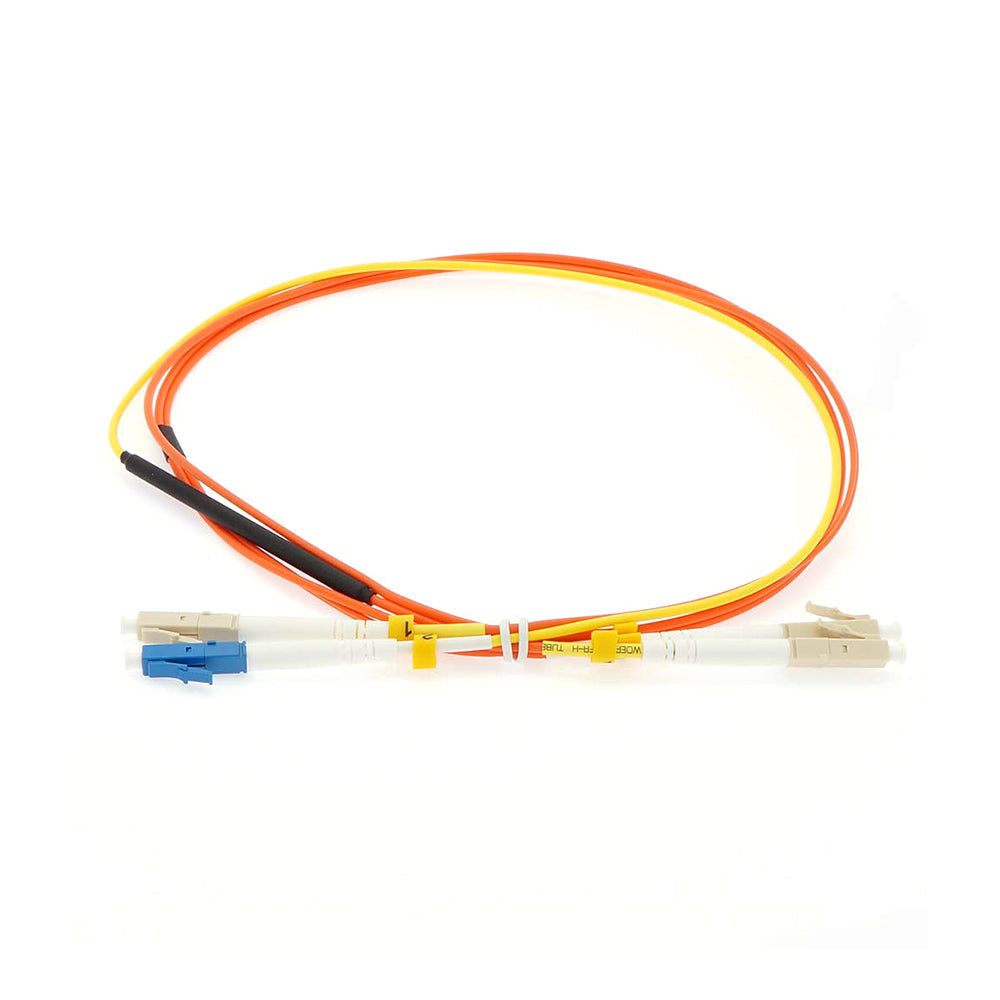

With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.
Connector 1: Single Mode 9/125 - LC
Connector 2: Multimode OM2 50/125 - LC
Connector Type | LC-LC Duplex | ||
Polishing | UPC | ||
Return Loss | 55dB | ||
Insertion Loss | 0.5dB (SM to MM Plus Connector Loss) | ||
Ferrule Material | Ceramic (zirconia) | ||
Ferrule Diameter | 1.25 mm / 2.5 mm | ||
Jacket OD | 2mm | ||
Fiber Mode | Singlemode LC / OM2 LC | ||
Jacket Material | OFNR/LSZH | ||
Operation Temperature Range | -20°C +70°C |
