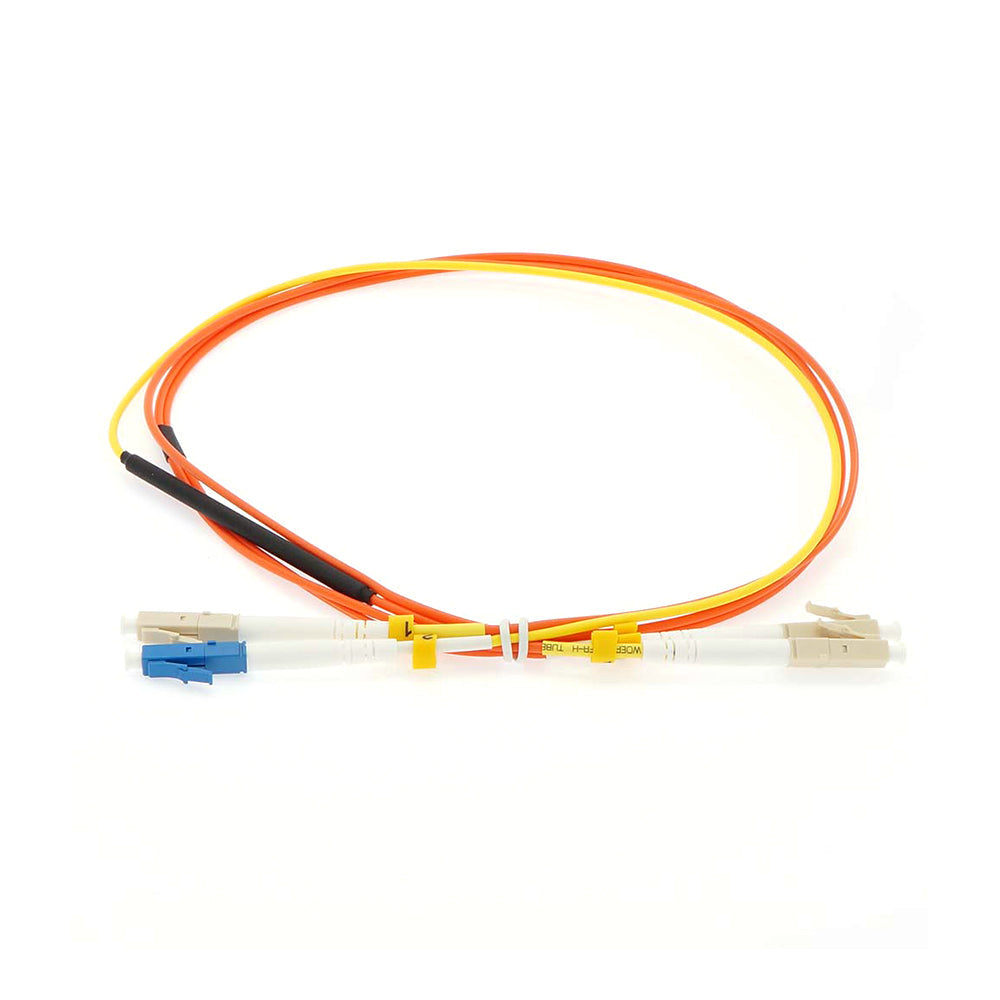

With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.
Connector 1: Single Mode 9/125 - LC
Connector 2: Multimode 62.5/125 - LC
|0.5dB (SM to MM Plus Connector Loss)
|1.25 mm / 2.5 mm
|Singlemode LC / OM1 LC
|Operation Temperature Range
