Description

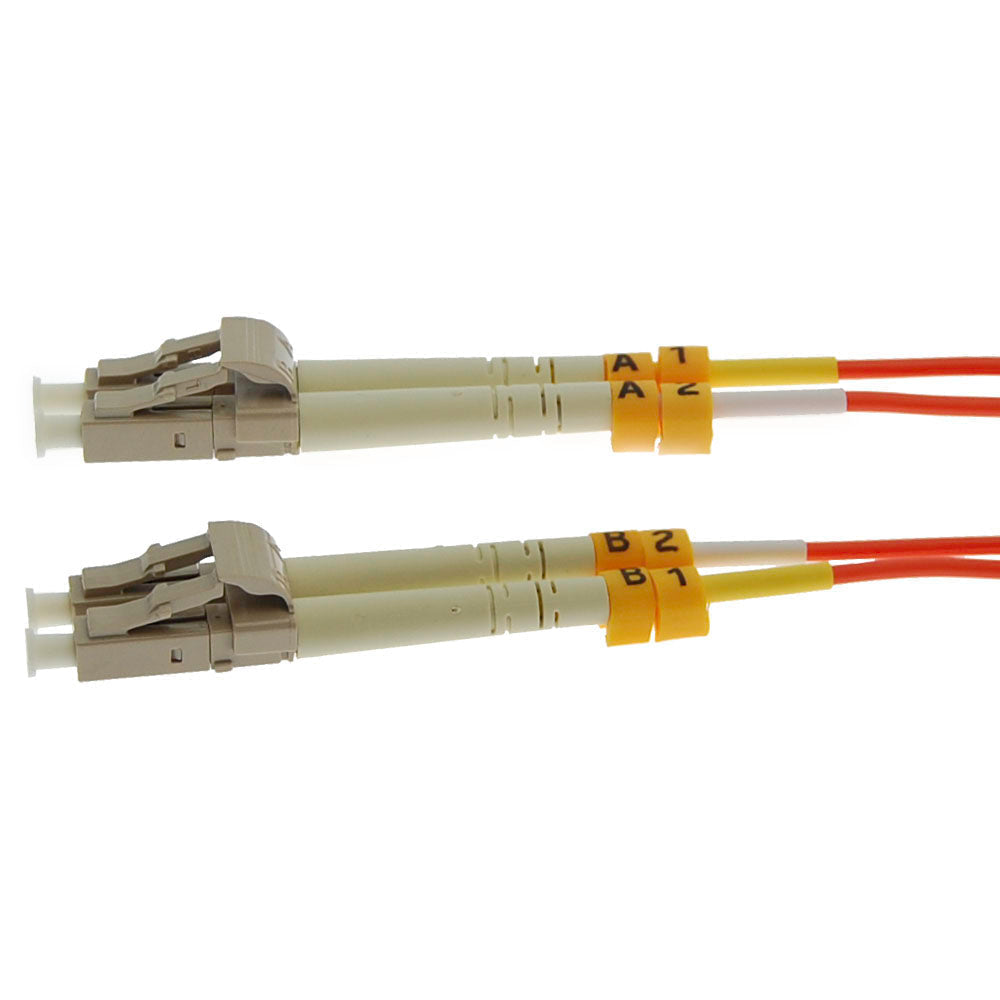

BigCatCables OM1 fiber optic patch cables are constructed of high quality ceramic ferrules and connectors, and 100% tested for quality assurance. Each cable includes test report.
| Connector Type | LC-LC Multimode | ||
| Polishing | UPC | ||
| Return Loss | 55 dB | ||
| Insertion Loss | 0.30 dB | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Cabled Optical Fiber | OM1 | ||
| Nominal Diameter Core | 62.5/125 µm | ||
| Jacket Material | OFNR/LSZH | ||
| Jacket Color | Orange | ||
| Operation Temperature Range | -20°C +70°C |
